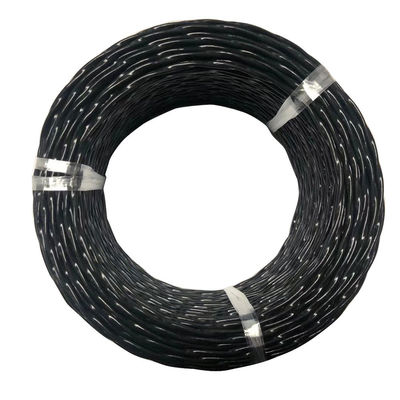

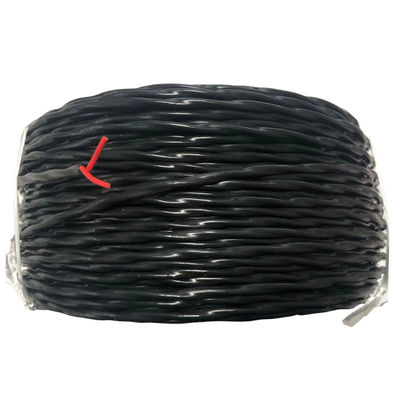

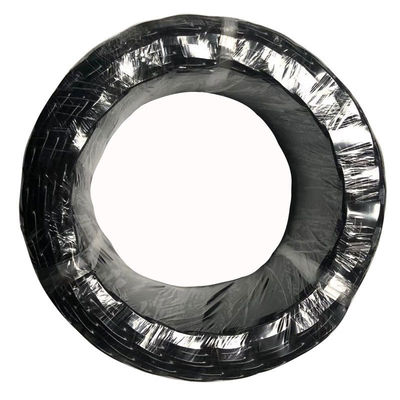

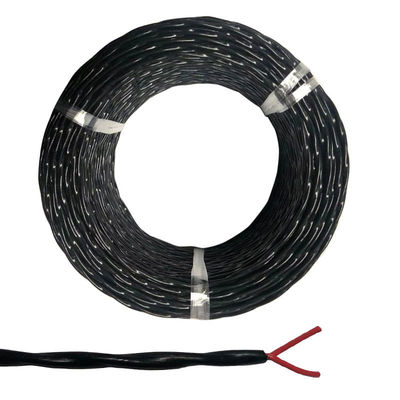

Name: Corrosion Resistant Oil Resistant Strong Acid Resistant FEP Insulated Wire and FEP Cable
Brand: Xiangtan Shenzhou Special Cable Co., Ltd
SKU: Serie AF-200
Price: 1.10 USD
Availability: InStock

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Materiale conduttore: Rame, rame argentato o rame stagnato

Materiale isolante: FEP

Tensione nominale: CA 600V o più basso

Tipo di conduttore: Bloccato, bloccato o solido

Numero principale: 1 nucleo, 2 nucleo, 3 nucleo, 4 nucleo, 5 nucleo..

Tipo di isolamento: FEP, PTFE, PFA, ETFE

Materiale della treccia: Rame argentato o rame stagnato

Materiale di guaina: FEP, PTFE, PFA, ETFE

Temperatura di lavoro: -65°C~+200°C

Indicatore del filo: 22AWG

Area della sezione trasversale: 0,35/0,40 mm2

Struttura del conduttore: 19/0.16

OD massimo: 1,95 mm (250 V), 2,2 mm (600 V)

Opzioni colore: Bianco, blu, rosso, nero, giallo, verde, trasparente, giallo/verde

Temperatura nominale: -65°C~+200°C

Evidenziare:

Corrosion Resistant FEP Insulated Wire

Oil Resistant FEP Cable

Strong Acid Resistant Fluoroplastic Wire

Informazioni di base

Luogo di origine: Hunan, Cina

Marca: Sanco cable

Numero di modello: Serie AF-200

Termini di pagamento e spedizione

Galleria

Corrosion Resistant Oil Resistant Strong Acid Resistant FEP Insulated Wire and FEP Cable

Descrizione di prodotto

2x22AWG Tinned Plated Copper FEP PFA PTFE ETFE Cable

FEP Insulation Fluorineplastic Wires feature excellent corrosion resistance, oil resistance, strong acid/alkali resistance, and oxidation resistance. These cables offer superior electrical insulation performance with high voltage resistance, low frequency loss, moisture resistance, and excellent fire resistance with long service life.

Applications

Ideal for electronic industry applications including temperature compensation wires, low/high temperature heating wires, and flame retardant wires. Commonly used in household appliances such as air conditioners, microwave ovens, electric ovens, lamps, and other heating appliances.

Product Features

Wear and scratch resistant
High and low temperature resistant (-65°C to +200°C)
Anti-aging and corrosion resistant
Electromagnetic interference resistant
Easy to strip

Cable Specifications

Specification	Details
Conductor Materials	Tinned Plated Copper or Silver Plated Copper
Conductor Type	Stranded or Solid
Number of Cores	1 Core, 2 Cores, 3 Cores, 4 Cores (customizable)
Insulation	FEP, PFA, PTFE, ETFE Insulated
Sheath	FEP, PFA, PTFE, ETFE
Rated Voltage	600V or Below
Rated Temperature	-65°C to +200°C
Color Options	White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green

Product Types

Type	Name
AF-200	Silver Plated Copper Core FEP Insulation Install Wire
AF-200-1	Tin Plated Copper Core FEP Insulation Install Wire
AFP-200	Tin/Silver Plated Copper Core FEP Insulation Shield Install Wire
AFS-200	Tin/Silver Plated Copper Core FEP Insulation Stranded Install Wire
AFSP-200	Tin/Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire

Cable Structures

Wire Gauge	Cross-section Area	Conductor Structure	Max. OD of Cable
36AWG	0.013mm²	7/0.05	0.65-1.3mm
22AWG	0.35/0.40mm²	19/0.16	1.4-2.2mm
8AWG	8mm²	133/0.28	6.0-7.3mm

Note: FEP high temperature lead wire specifications and core numbers can be customized.

Company Information

Xiangtan Shenzhou Special Cable Co., LTD is a leading wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, ensuring superior quality and competitive pricing.

Our product range includes High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, and Power cable. We maintain advanced production facilities and collaborate with universities and research institutes to offer customized cable solutions.

Our Honors

Contributed to China's manned space flight projects including Shenzhou 7
Participated in "Arrow of God" project for astronaut space exploration
Recognized by China Academy of Launch Vehicle Technology

Our Service

Free technical consultation before, during, and after sales
Free samples and design services
Quality monitoring during manufacturing
Free insurance for internal transportation
OEM & ODM services available
Small order quantities accepted

FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer of military and consumer cable wire and cable compound, located in Hunan Province, China.

Q: What is your company's strengths?

A: We are a stable supplier for China's aerospace and military with 21 years experience, producing our own cable compounds for superior quality.
